User Interface

enaio® webclient 10.10 »

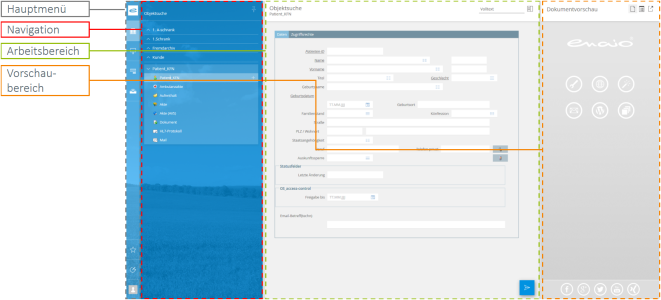

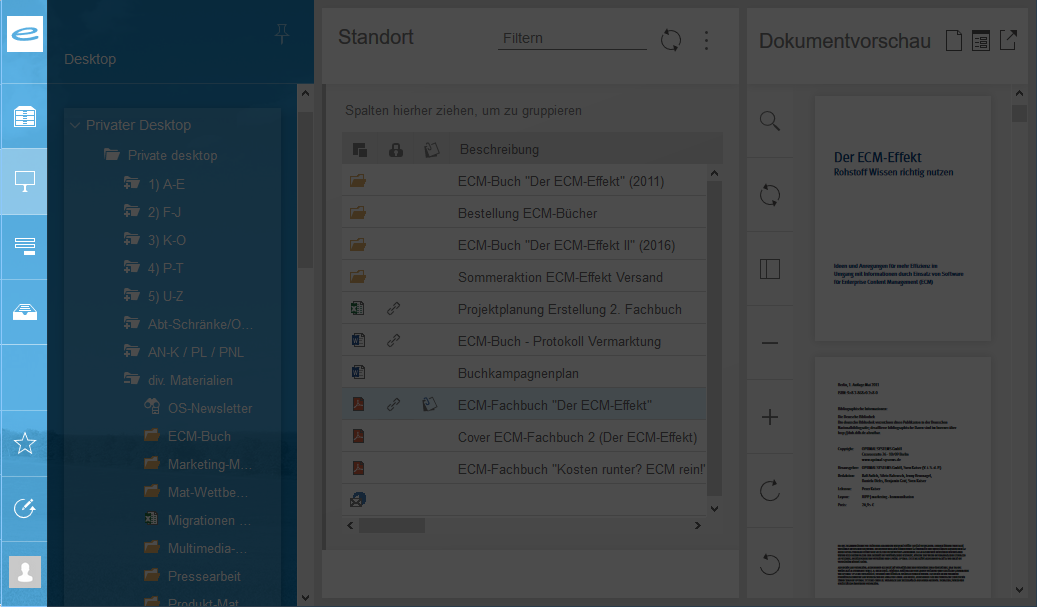

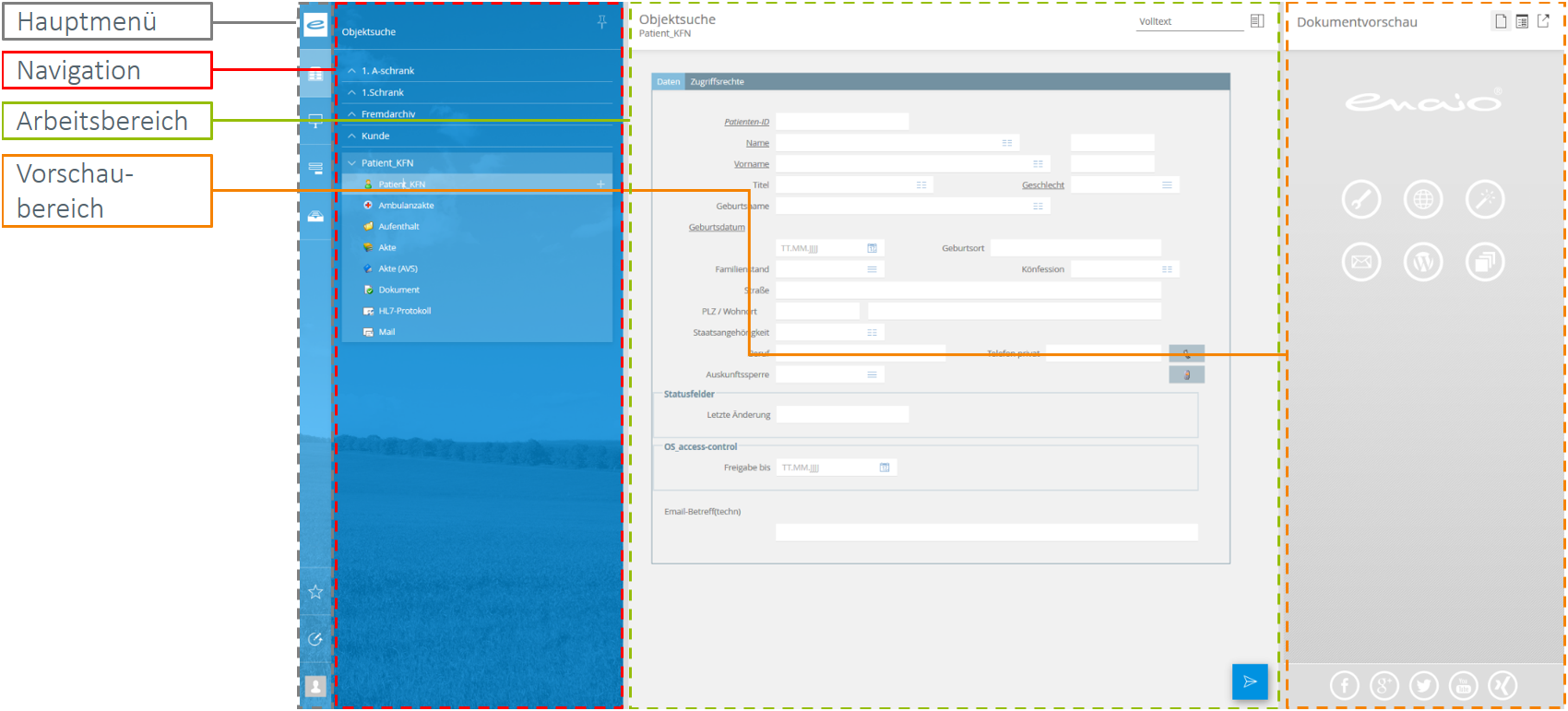

The enaio® webclient user interface consists of four areas.

User interface

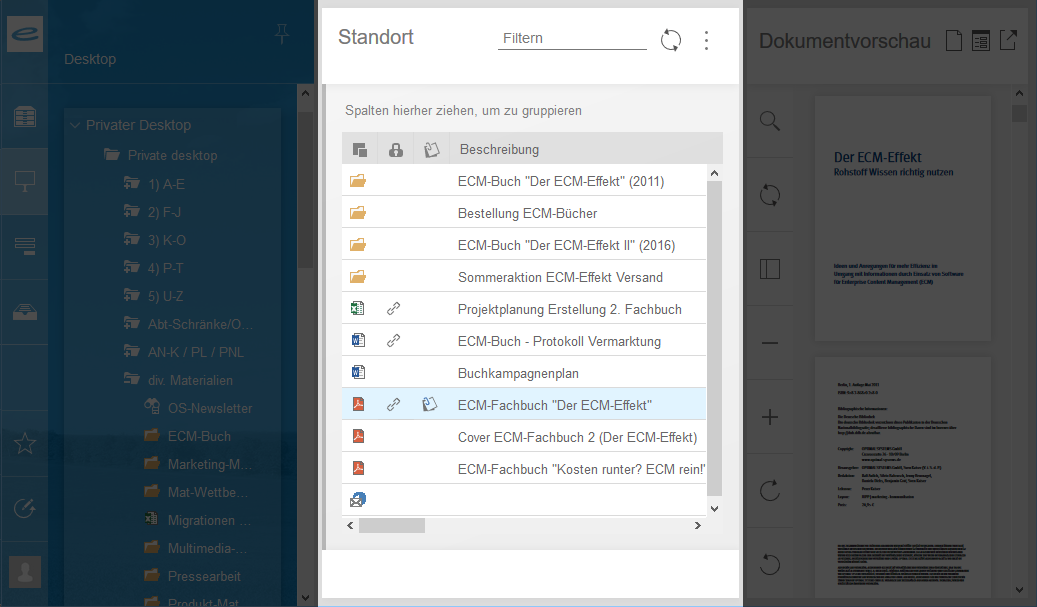

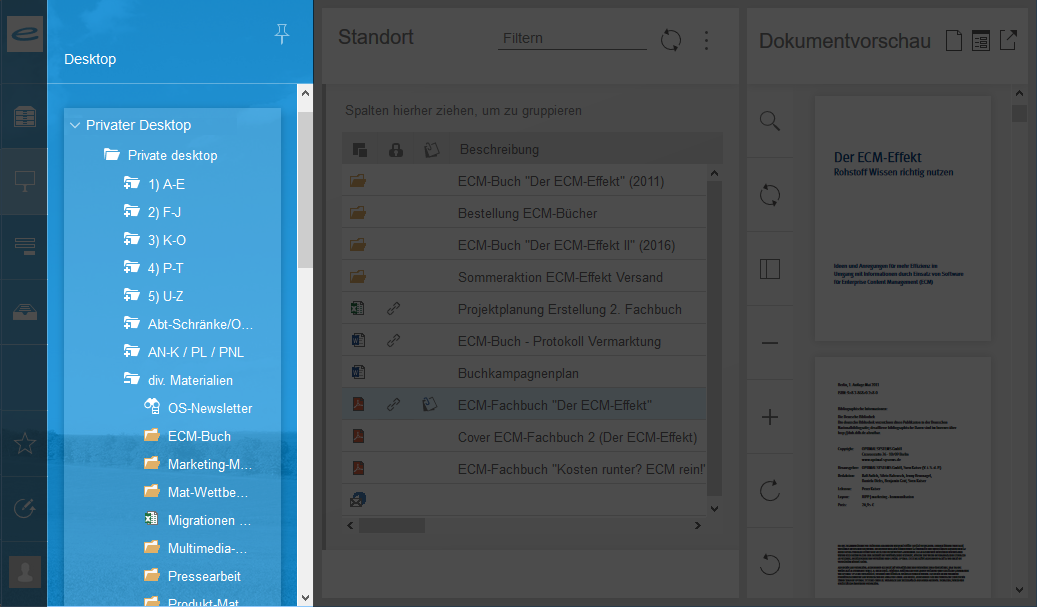

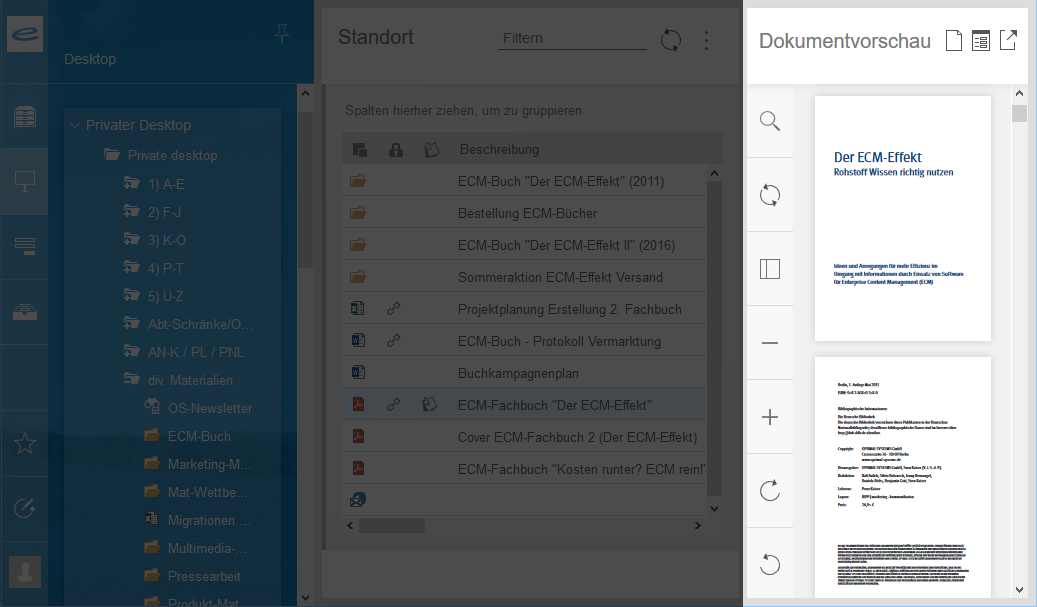

The width of the workspace between the navigation and preview area is dynamically adjusted to the width of the browser window. You can adjust the width of all areas using the separator bars.


enaio® webclient supports user interface scaling up to 400%. Use the scale feature in your browser's settings menu.

Changing the Layout

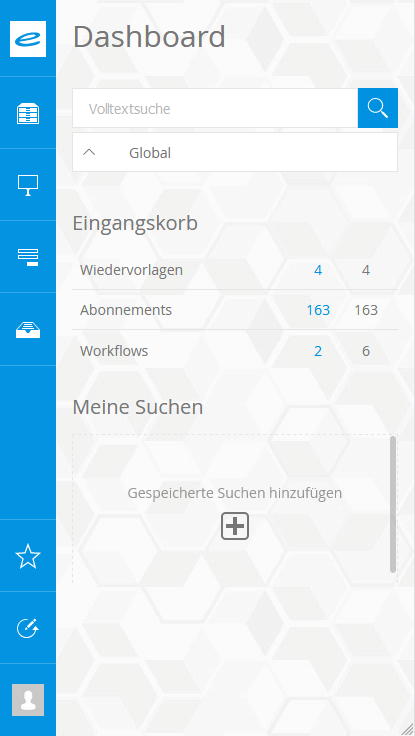

The layout of the user interface switches to the layout mode of enaio® mobile at a certain window size to ensure that it remains possible to operate enaio® webclient and desktop application of enaio® webclient even with small application windows. You need to restart the client to change the layout. In this case, you will receive a notification informing you that you need to restart the client. You will also need to restart the client if you want to increase the size of the application window again.

Resizing Dialog Windows

The content of dialogs in enaio® webclient can differ greatly. Sometimes the available space in the dialogs limits their usability. For this reason, enaio® webclient and enaio® webclient as a desktop application allow you to change the width of a dialog. The resized dialog is saved and applied to all dialogs in enaio® webclient and enaio® webclient as a desktop application. If the window size is smaller than the saved dialog size, then the dialog is reduced accordingly without saving the reduced width.

The following applies if you are using enaio® mobile:

In enaio® mobile on smartphones, dialogs are always displayed across the maximum available width. On tablets, dialogs in enaio® mobile are displayed in the width as configured and stored. However, you cannot change the dialog width.
