Start

enaio® capture • 11.10 »

enaio® server, enaio® capture, and the enaio® capture database must be installed and started.

Users processing batches have to have the right to start enaio® capture.

enaio® capture and the subprograms and batches used have to be licensed at the respective workstations.

You can integrate enaio® capture into your enaio® clientExternal link – icon as an external application or start it using a link on the computer desktop (please refer to the Windows Help for details on a link).

enaio® client and enaio® capture must be installed.

To create links to external applications you will need the relevant system role.

  1. Open enaio® client.

  2. Open the object search.

  3. Select the Desktop area.

  4. Right-click to open the context menu.

  5. Select Application.

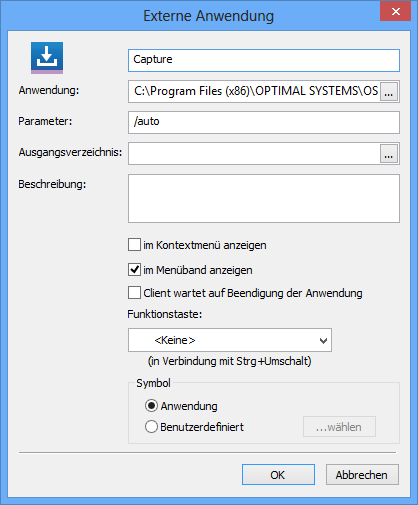

    The Application form will now open.

    enaio® capture – Screenshot

  6. Fill out the form:

    • Enter a name in the first field.

    • Enter the path for the application axindex.exe into the Application field. Your system administrator will provide you with information about this.

    • If you enter the parameter /auto into the Parameter field, enaio® capture will be executed in Automatic Mode.

    • Select a source directory.

      The description entered here will be shown as a tooltip.

    • If you enable the Show in context menu option, you can then call up the enaio® capture application via the context menu of a selected object.

    • If you enable the Show in menu option, you can then call up the enaio® capture application via a button on the START ribbon tab.

    • If you enable the Client will wait for application to quit option, you cannot continue working until the enaio® capture application has been closed.

    • The Function key list allows you to select a function key that, when pressed together with Ctrl+Shift, will launch the enaio® capture application. Check whether the keyboard shortcuts are already in use.

    • If you select Icon > Application, the enaio® capture application is flagged with the application-specific icon. Alternatively, you can select User-defined and press Select to choose a enaio® icon.

  7. Confirm your entries by clicking OK.

The link is saved and will appear in the Desktop directory in the object search.

Depending on the configuration, the enaio® capture application is also shown in the context menu and on the START ribbon tab.

After having started enaio® capture, you can change the password from the ENAIO ribbon, provided your administrator has granted you this right, and set the language and color scheme for the workspace.
